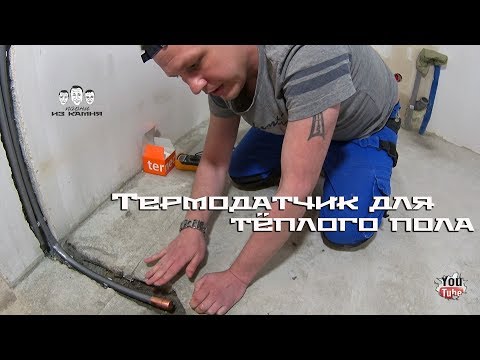

How to install a temperature sensor for underfloor heating under tiles

Video Description

Terneo AX thermostat with temperature sensor for underfloor heating - https://bit.ly/terneo_ax How to install a temperature sensor for underfloor heating under tiles! We've already filmed the installation of electric underfloor heating and its thermostat on camera several times, and today we'd like to specifically discuss the nuances of installing a temperature sensor. In video #409, "How to Install a Temperature Sensor for Underfloor Heating Under Tiles," we'll delve a little behind-the-scenes into this type of electrical installation. First, it's important to understand what a temperature sensor for electric underfloor heating is. It's a copper wire in a PVC sheath that transmits temperature measurements from the heating mats to the thermostat. On one end is a thermistor in a glass or plastic bulb, protected by a helium sheath, and on the other end is a double copper terminal. A classic installation. Typically, the temperature sensor is installed in a standard corrugated pipe with a plug at the end to prevent the thermistor from being flooded during tiling. The corrugated pipe itself is inserted 30-50 cm into one of the corrugations of the underfloor heating system. The corrugated pipe simultaneously protects the temperature sensor from mechanical damage and allows for its subsequent replacement if it fails. There are two issues here. • First, replacing the temperature sensor is difficult due to the ribbed surface of the corrugated pipe; pushing it in is especially difficult. Therefore, ideally, the corrugated pipe should be replaced with a metal-plastic or cross-linked polyethylene pipe. • Second, this can cause inaccurate temperature readings from the electric underfloor heating system under the tiles. To address this, it's best to install a sealed copper tube at the end of the pipe. Copper is known to be an excellent conductor of heat! Copper tubes can be solid, glued, or welded. These are just a few of the secrets that will be revealed in the video about how to install a temperature sensor for underfloor heating under tiles yourself during a turnkey apartment renovation! A new video in our VK group about how to install electric underfloor heating under ceramic tiles, specifically about the temperature sensor - https://vk.com/guysstone Our Instagram with exclusive photos from the world of renovation and finishing, including electrical work -   / guys_stone_   An Excel file with channel navigation and links to all videos about apartment renovations in Moscow and Volgograd, including how to install a temperature sensor for an electric underfloor heating thermostat, a kind of master class - https://yadi.sk/i/NExnOhQD3HWJMD #WarmFloor #ThermalSensor #Terneo
